Big Automatic Rotary Tablet Press

This high speed tablet press machine is widely used in pharmaceutical care industry,and get very positive feedback from the end-users. We can customize this high speed tablet press machine according to your detailed requirement.
We can produce 10 sets of this automatic tablet press machine every month, and we have installed this automatic tablet compress machine in many countries.

This GPKZ1060 (GZPT1060) high speed triple totary tablet press machine has three tablet discharging chutes, three groups of pressing rollers, and each group of pressing roller provide both pre-pressure and main pressure of 100KN;
This automatic triple rotary tablet press machine is suitable fore large scale tablet production and high level of automatic funtion is applied on this triple high speed tablet press machine;
This automatic high speed triple rotary tablet press machine can also be used to press three layer tablets and two layer tablets by installing the corresponding lower punch tracks.

This high speed rotary tablet press machine GZPK720 is a full-automatic high speed tablet making machine, and this smart tablet machine is widely used in large scale production of medicine tablets.
GZPK720 Automatic double Rotary High Speed Tablet Press Machine is equiped with various automatic function, such as automatic tablet weight controlling device, automatic defective tablet rejection system.
This high speed tablet machine can take EU D type tablet molds or EU B type tablet molds, or take both by changing the turret of this high speed tablet press machine.

This ZPTX420-17G is sepcialy designed for two layer dishwasher tablet production. The structure of this two layer dishwasher tablet making machine is strongly strengthened, can endure more powerful pressure.
The punches and dies of this two color dishwasher tab machine is longer than normal rotary tablet press punches and dies, and can edure more abrasion because of the bigger contacting space.
The pressure of this two layer detergent tablet press machine is much higher than standard rotary tablet press machines. So this dishwasher tablet making machine can also be used as chlorine tablet machine.

Common features of this rotary tablet press :
This high speed tablet press has PLC control with automatic protective function; Touch screen operation, operation menu is very brief and easy for understanding;
force feeding system of the automatic rotary tabelet press machine has good applicability to powder; Automatic lubrication system can reduce the noise and abrasion of the automatic rotary tablet press machine very effectively, and prolong the life time of the tablet press punches and dies.
Auto adjusting of the powder filling quantity; the pressure of every punch of the high speed tablet press can be monitored and displayed on the touch screen; Defective rejection system can be rejected automatically from the high speed pill press machine.

This high speed rotary tablet press machine has two sets of pressing units, pre-pressue:100KN and main-pressure : 100KN, which make this high capacity tablet press machine have the excellent performance in the mass production of medicine tablets.
Sevo motors are dopted on this full automatic rotary tablet press, and Variable Frequency Speed Regulating make the operation of the machine very easy.
Thickness of the tablet, fill depth and pressure data can be displayed on the touch screen of this high capacity tablet press.

This high capacity rotary tablet press machine has hand wheels, but the adjusting of the pressure, material filling depth, and the tablet thickness can be adjusted by both hand and touch screen. The punches pressure can be monitored and displayed on the healthcare tablet press machine's touch screen.
Our automatic high speed medicine pressing machine has the punches over tight protection system, force feeding device, over loading protection and erro warning. This fast speed rotary tablet making machine also has the automatic lubrication system.

GZP540 high speed rotary tablet press machine has two discharges, and can press 350000pcs/hour, main pressure of the automatic high-speed tablet making machine is 100KN, and pre-pressue is 30KN.
The thickness, filling quantity can be displayed on the PLC interface.
Thin oil lubrication system is adopted on this high-speed rotary tablet press machine, and the lubrication is very accurate and the lubrication quantity can be set according to requirement.
The force feeding system can be removed and installed very easily. This rotary tablet press machine has two groups of tablet pressing wheels, and is very suitble for checmical, food and electronic products production.

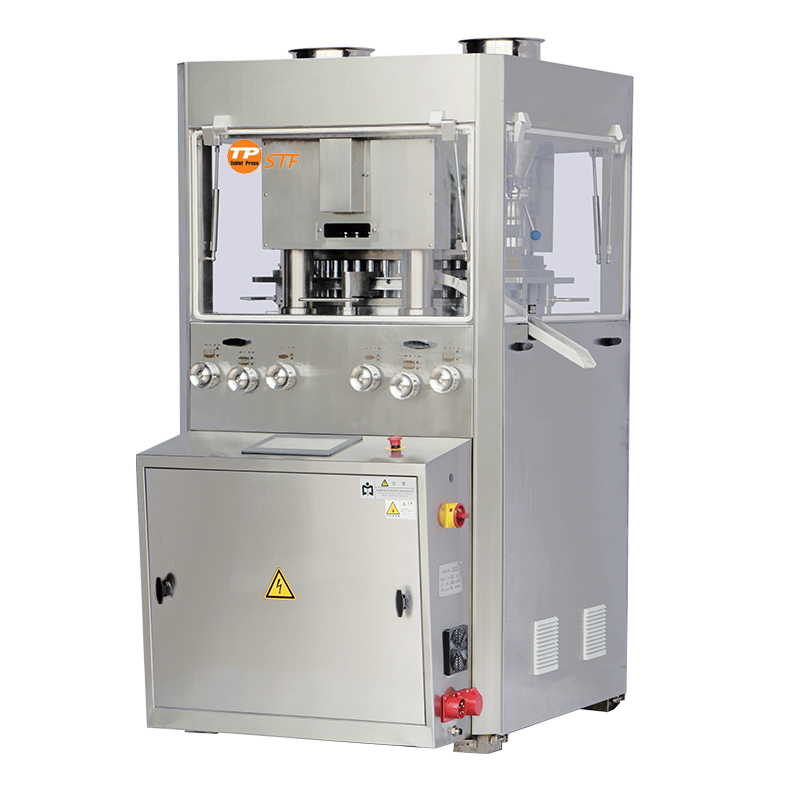

Automatic Pharmaceutical Tablet Press model GZPK720i can press two layers of tablets with different colors, annular tablets and irregular tablets, suitablet for pharmaceutical factory, food and chemical industries. The tablets are pressed two times by main pressure and pre-pressing wheels.
This GZPK720i automatic pill press machine has central auto lubrication system. Double-sided discharge. There is no hand-wheels, all the operation can be done on the touch screen. This automatic pill making machine adopts synchronous motor to realize the automatic production.
This automatic high-speed medecine pill making machine adopts encoder to coun the tablets. The automatic pill making machine aslo has the imported hydraulic pump to support the main presure and pre-pressure, and this high speed rotary tablet press machine is equiped with overloading protection system, and the machine will stop automatically when the pressure goes beyond the limit.
